32E0500 002, QUICK COUPLER, LIUGONG PARTS CATLOGUES

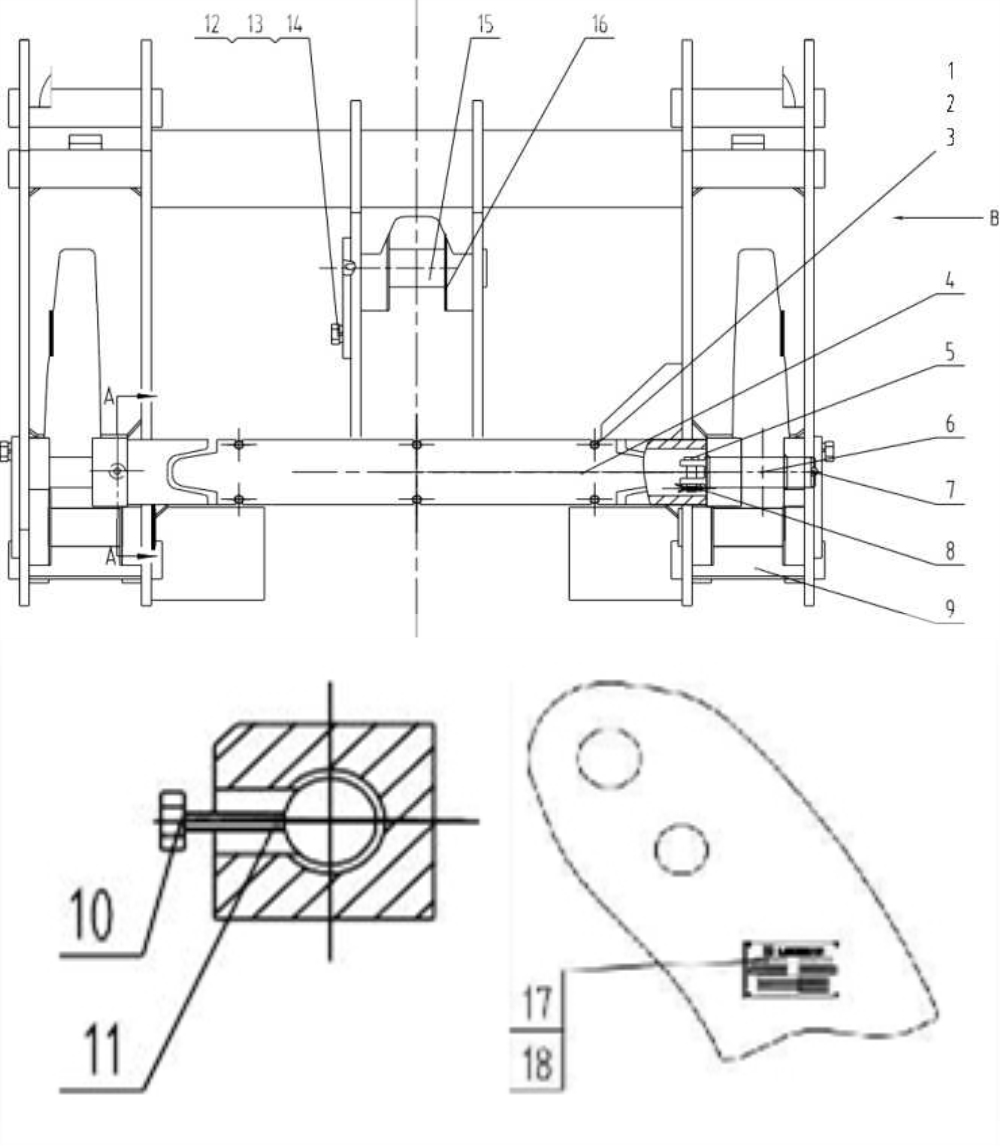

| 32E0500 002 快换装置 QUICK COUPLER | |||||||
|---|---|---|---|---|---|---|---|
| 件号 ITEM |
部件号 PART NO. | 版本 VER |
零件名称 | PART NAME | 数量 Q'TY |
||
| 1 | 00B0022 | 000 | 螺栓 | BOLT | 6 | ||
| 2 | 06B0024 | 000 | 垫圈 | WASHER | 6 | ||
| 3 | 06B0346 | 000 | 垫圈 | WASHER | 6 | ||
| 4 | 20A5757 | 000 | 盖板 | COVER | 1 | ||
| 5 | 66A0152 | 000 | 销 | PIN | 2 | ||
| 6 | 60A1198 | 000 | 快换销 | PIN | 2 | ||
| 7 | 10B0014 | 000 | 油杯 | GREASE FITTING | 2 | ||
| 8 | 08B0021 | 000 | 销 | PIN | 2 | ||
| 9 | 22D0498 | 001 | 快换 | QUICK COUPLER | 1 | ||
| 10 | 00B0030 | 000 | 螺栓 | BOLT | 2 | ||
| 12 | 00B0093 | 000 | 螺栓 | BOLT | 3 | ||
| 13 | 06B0012 | 000 | 垫圈 | WASHER | 3 | ||
| 14 | 06B0351 | 000 | 垫圈 | WASHER | 3 | ||
| 15 | 11L0015 | 003 | 销 | PIN | 3 | ||
| 16 | 56H0005 | 001 | 垫片 | SHIM | 6 | ||
| 17 | 10A4679 | 000 | 铭牌 | NAMEPLATE | 1 | ||
| 18 | 01B0012 | 000 | 铆钉 | RIVET | 4 | ||
