43C1751 001, LOGGING FORK CLAMP, LIUGONG PARTS CATALOGUES

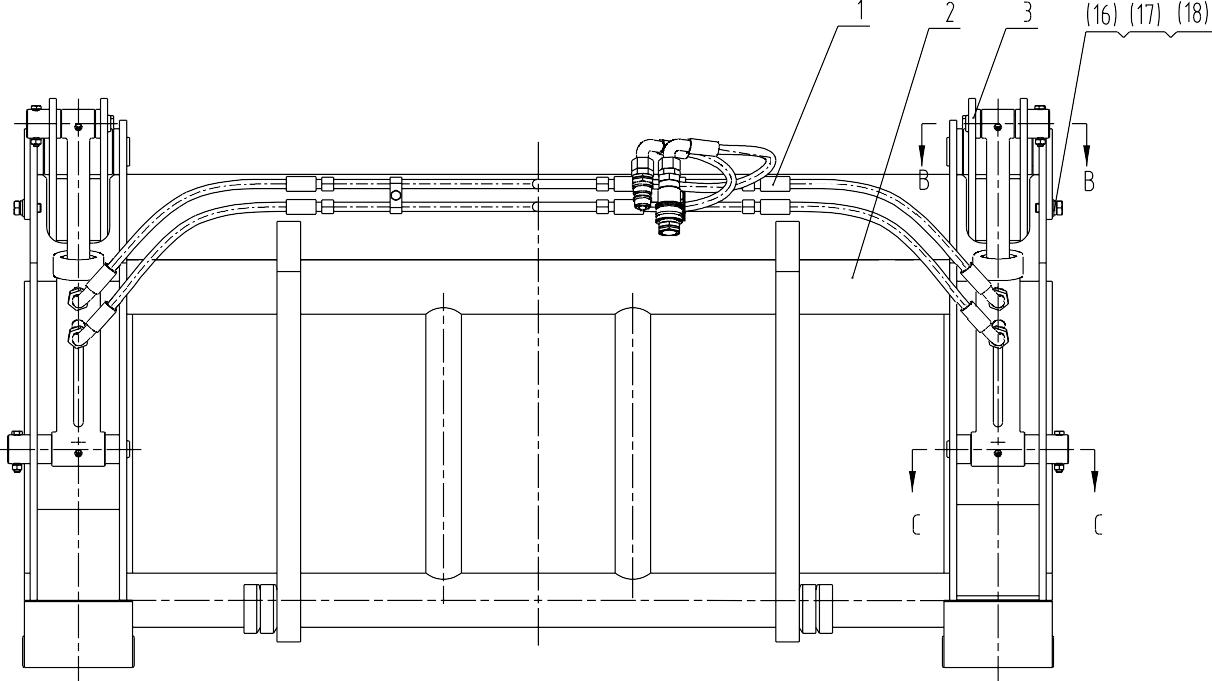

| 43C1751 001 抱叉 LOGGING FORK CLAMP | |||||
|---|---|---|---|---|---|
| 件号 ITEM |
部件号 PART NO. | 版本 VER |
零件名称 | PART NAME | 数量 Q'TY |
| 1 | 15E0828 | 000 | 液压系统 | HYDRAULIC SYSTEM |
1 |
| 2 | 25D0197 | 002 | 叉体 | FORK BODY | 1 |
| 3 | 25D0165 | 001 | 夹紧叉 | FORK | 1 |
| 4 | 34C1789 | 000 | 标贴组件 | DECAL GROUP | 1 |
| 5 | 34C1787 | 000 | 标贴组件 | DECAL GROUP | 1 |
| 6 | 34C1788 | 000 | 标贴组件 | DECAL GROUP | 1 |
| 7 | 03B0053 | 000 | 螺母 | NUT | 4 |
| 8 | 06B0347 | 000 | 垫圈 | WASHER | 4 |
| 9 | 01B0100 | 000 | 螺栓 | BOLT | 4 |
| 10 | 25D0164 | 000 | 夹紧叉 | FORK | 1 |
| 11 | 34C0034 | 001 | 密封圈 | SEAL RING | 4 |
| 12 | 55A1263 | 000 | 钢套 | STEEL SLEEVE | 2 |
| 13 | 11L0015 | 003 | 销 | PIN | 2 |
| 14 | 86A0258 | 001 | 油杯护套 | BOOT | 2 |
| 15 | 10B0014 | 000 | 油杯 | GREASE FITTING | 2 |
| 16 | 06B0349 | 000 | 垫圈 | WASHER | 2 |
| 17 | 06B0012 | 000 | 垫圈 | WASHER | 2 |
| 18 | 00B0093 | 000 | 螺栓 | BOLT | 2 |
| 19 | 60A1546 | 000 | 销轴 | PIN | 2 |
| 20 | 60A1545 | 000 | 销轴 | PIN | 2 |
