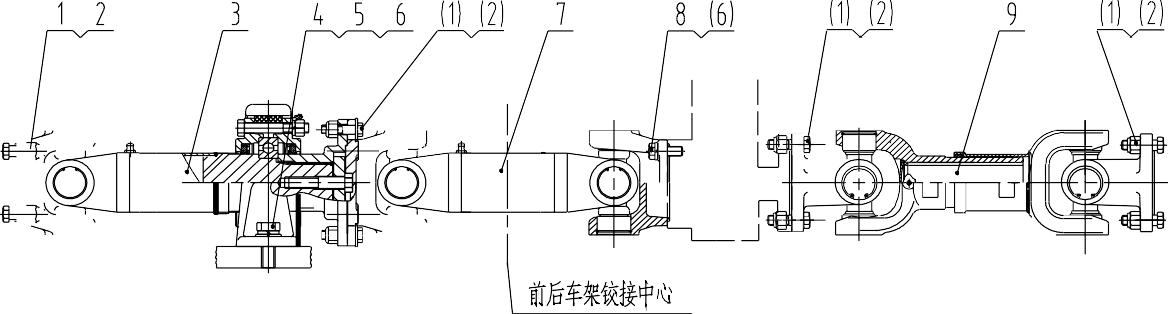

03E0074 002, DRIVE SHAFT SYSTEM, LIUGONG PARTS CATALOGUES
| 03E0074 002 传动轴系统 DRIVE SHAFT SYSTEM | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 件号 ITEM |
部件号 PART NO. | 版本 VER |
零件名称 | PART NAME | 数量 Q'TY |
|||||
| 1 | 04B0602 | 000 | 铰接螺栓 | BOLT | 16 | |||||
| 2 | 03B0025 | 003 | 锁紧螺母 | LOCKNUT | 16 | |||||
| 3 | 41C0535 | 004 | 前传动轴 | FRONT DRIVE SHAFT | 1 | |||||
| 4 | 00B0057 | 000 | 螺栓 | BOLT | 2 | |||||
| 5 | 06B0009 | 000 | 垫圈 | WASHER | 2 | |||||
| 6 | 06B0350 | 000 | 垫圈 | WASHER | 6 | |||||
| 7 | 51K0012 | 002 | 后传动轴 | REAR DRIVE SHAFT | 1 | |||||
| 8 | 04B0603 | 000 | 铰接螺栓 | BOLT | 4 | |||||
| 9 | 41C0252 | 002 | 传动轴 | DRIVE SHAFT | 1 | |||||
