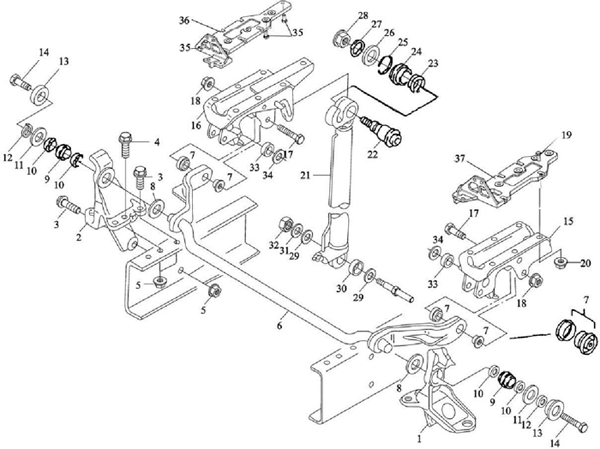

LEFT DRIVE CABIN ROTATION MECHANISM, SHACMAN PARTS CATALOGS

Keywords: shacman truck parts, shacman parts catalogs, shacman parts, parts catalogs, parts list

NO Part.No Designation Name Quantity Remark
1 81.41720.0091 前悬置左支座 Bracket left 1
2 81.41720.0090 前悬置右支座 Bracket right 1
3 Q1811450TF2 六角锁紧螺钉 Hex lock screw 8 M14×50
4 Q1811440TF2 六角锁紧螺钉 Hex lock screw 2 M14×40
5 06.11251.2005 锁紧螺母 Hex lock nut 10 M14×1.5-10-MAN183-B1
6 DZ13241430080 翻转轴总成（出口） Locating arm assembly 1
7 81.96210.0437 垫 圈 Rubber pad plastic/steel 2
8 81.90713.0909 垫 片 Shim 2 33×65×6-ST/GI
9 06.36950.0510 轴承衬套 Bearing bush 2
10 81.96503.0129 垫 片 Seal 4 35.5×47×5-PUR
11 81.96101.0638 垫 片 Washer 2 32×70×4-PAF
12 81.96210.0407 垫 片 Washer 2 A15×28×2.5-200HV-
13 06.15013.0415 垫 片 Washer 2
14 Q218B1430 内六角圆柱头螺钉 Cylinder crew 2 M14×30
15 DZ13221430100 翻转轴左支撑总成 Bracket assembly left 1
16 DZ13221430105 翻转轴右支撑总成 Bracket assembly right 1
17 Q151B16100 六角头螺栓 Hex shoulder stud 2 M16×100
18 1.90004E+11 六角锁紧螺母 Hex lock nut 2 AM16×1.5-10-A3C
19 Q150B1235 六角头螺栓 Hex bolt 11 M12×1.5×35-8.8-A-
20 Q33212 六角锁紧螺母 Hex lock nut 14 M12×1.5-MAN183-B1
21 DZ93259820105 加强翻转油缸 Hydraulic cylinder 1
22 81.91020.0742 销 子 Pin 1 6×32.4×25-X12CRNI177K
23 81.97602.0764 压力弹簧 Pressure spring 1
24 81.41723.0064 垫 片 Washer 1 A23.2×1.25
25 81.90820.0500 垫 片 Circlip 1 25×38×3-PE
26 81.90713.0697 垫 圈 Washer 1 16.2×36×4-ST2K32-A4C
27 81.90713.0696 衬 板 Washer 1 AM16×1.5-10-A3C
28 06.11241.0117 螺 母 Hex lock nut 2
29 81.90712.0983 垫 片 Washer 2 29.5×40×7-PUR
30 81.96502.0867 石棉垫圈 Seal 1 18.2×44×3-ST50-2-A3C
31 81.90713.0695 垫 片 Washer 1 AM18×2-10-MAN183-B1
32 06.11241.0321 锁紧螺母 Hex lock nut 2 20×40×20
33 81.95801.0114 滚 柱 Bush 2 20×1.20-ZNPHR5F
34 06.29010.0117 挡 圈 Circlip
35 Q151B1430 六角头螺栓-细牙 Hex collar lock nut 14
36 DZ15221430101 左连接支座 Left connector seat 1
37 DZ15221430102 右连接支座 Right connector seat 1
