AC SYSTEM & BODY, SHACMAN PARTS CATALOGS
HOME CATALOG > SHACMAN PARTS CATALOGS > SHACMAN CABIN PARTS CATALOGS >

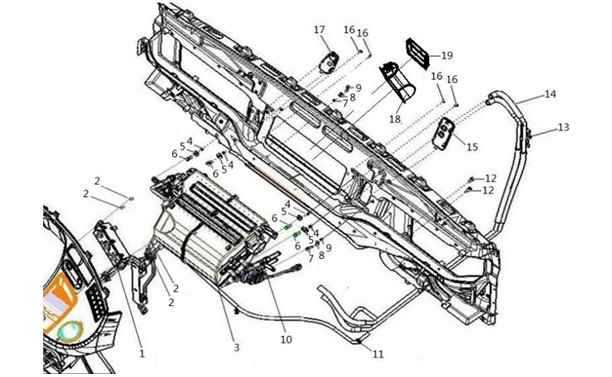

| NO |
Part.No |
Designation |
Name |
Quantity |
| 1 |
DZ96189585303 |
空调控制器（新 M3000/改进） |
Air conditioning control panel |
1 |
| 2 |
Q2140616 |
十字槽盘头螺钉 |
Cross recessed mushroom head tapping screws |
4 |
| 3 |
DZ15221842302 |
空调本体总成（新 M3000/新状态/BH） |
Cooling and heating integrated machine |
1 |
| 4 |
Q40310 |
弹簧垫圈 |
Spring washer |
4 |
| 5 |
Q40110 |
平垫圈 |
Plain washer |
4 |
| 6 |
Q150B1025 |
六角头螺栓 |
Six hexagon-head bolts |
4 |
| 7 |
Q150B0625 |
六角头螺栓 |
Six hexagon-head bolts |
2 |
| 8 |
Q40106 |
平垫圈 |
Plain washer |
2 |
| 9 |
Q40306 |
弹簧垫圈 |
Spring washer |
2 |
| 10 |
DZ15221841113 |
空调排水管（新 M3000/BH) |
AC drainage pipe pieces |
1 |
| 11 |
DZ15221841111 |
空调排水管密封垫（BH） |
AC drainage pipe washer |
1 |
| 12 |
Q1840820 |
六角法兰面螺栓 |
Six angle bolt flange |
8 |
| 13 |
DZ15221845027 |
暖风铝管总成 |
Warm air pipe |
1 |
| 14 |
DZ15221842003 |
暖风成型胶管（HP42508120181） |
Warm air pipe connection hose |
2 |
| 15 |
DZ15221842001 |
空调暖风管路密封垫（HP42508120160） |
Heater tube sealing pad of front panel |
1 |
| 16 |
Q27104812 |
十字槽小盘头 C 型自攻螺钉 |
Screw |
4 |
| 17 |
DZ15221842002 |
空调冷媒管路密封垫（HP42508120170） |
Coad coal pipe gasket of front panel |
2 |
| 18 |
DZ15221841902 |
风机外罩总成(新 M000/BH) |
Fan housing assembly (new M000 / BH) |
1 |
| 19 |
DZ15221841315 |
空调滤芯总成（BH） |
Air conditioner filter assembly (BH) |
1 |

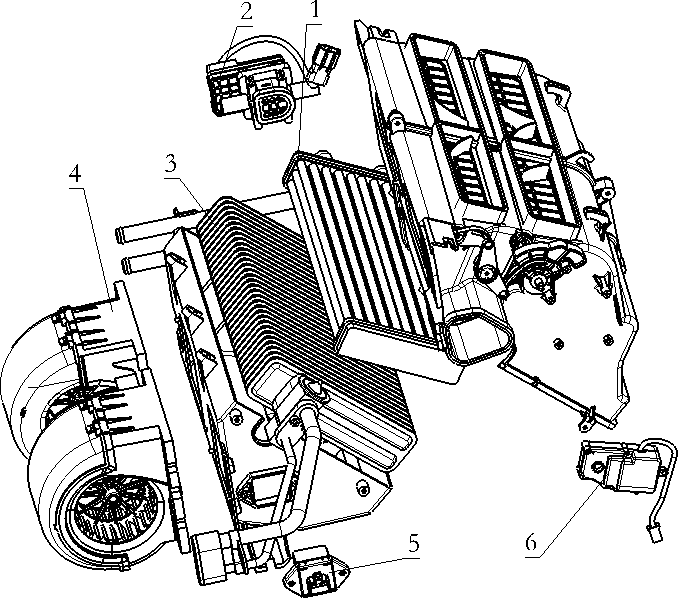

| NO |
Part.No |
Designation |
Name |
Quantity |
| 1 |
DZ15221840101 |
暖风芯体总成 |
Heater core assembly |
1 |
| 2 |
DZ15221840102 |
电动水阀（新 M3000） |
Electric water valve (new M3000) |
1 |
| 3 |
DZ15221840701 |
蒸发器芯体总成 |
Evaporator core assembly |
1 |
| 4 |
DZ15221840402 |
蒸发风机总成 |
Evaporation fan assembly |
1 |
| 5 |
DZ15221840410 |
调速模块(新 M3000/BH) |
Speed regulation module (new M3000 / BH) |
1 |
| 6 |
DZ15221841701 |
模式电机(新 M3000/BH) |
Mode motor (new M3000 / BH) |
1 |
