AC PIPE & ROUTE, SHACMAN TRUCK PARTS CATALOGS
HOME CATALOG > SHACMAN PARTS CATALOGS > SHACMAN CABIN PARTS CATALOGS >

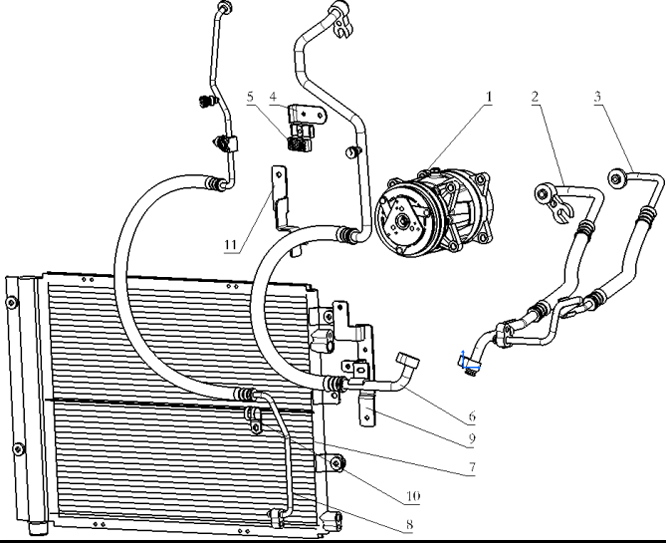

| NO |
Part.No |
Designation |
Name |
Quantity |
| 1 |
DZ13241845132 |
压缩机总成（斜压板、8PK） |
Compressor assembly (inclined plate, 8PK) |
1 |
| 2 |
DZ15221840855 |
蒸发器-压缩机管总成 |
Evaporator-compressor tube assembly |
1 |
| |
|
(WP10/四气门) |
(WP10 / four valves) |
|
| 3 |
DZ15221846801 |
压缩机-冷凝器管路 |
Compressor-condenser line |
1 |
| 4 |
DZ15221845030 |
管路支架 |
Pipe support |
1 |
| 5 |
DZ15221845025 |
管路固定管夹 |
Pipe clamp |
2 |
| 6 |
DZ15221846806 |
蒸发器-压缩机管路（新 |
Evaporator-compressor line (new |
1 |
| |
|
M3000/WP10E40） |
M3000 / WP10E40) |
|
| 7 |
DZ15221845033 |
冷凝器总成(新 M3000) |
Condenser Assembly (New M3000) |
1 |
| 8 |
DZ15221840842 |
冷凝器-蒸发器管路 |
Condenser-evaporator lines |
1 |
| 9 |
DZ15221841146 |
空调管路支架（水箱） |
Air-conditioning pipe bracket (water tank) |
1 |
| 10 |
DZ13241824512 |
管夹(二) |
Pipe clamp (2) |
1 |
| 11 |
DZ15221841134 |
管路固定支架一 |
Pipe fixing bracket one |
1 |

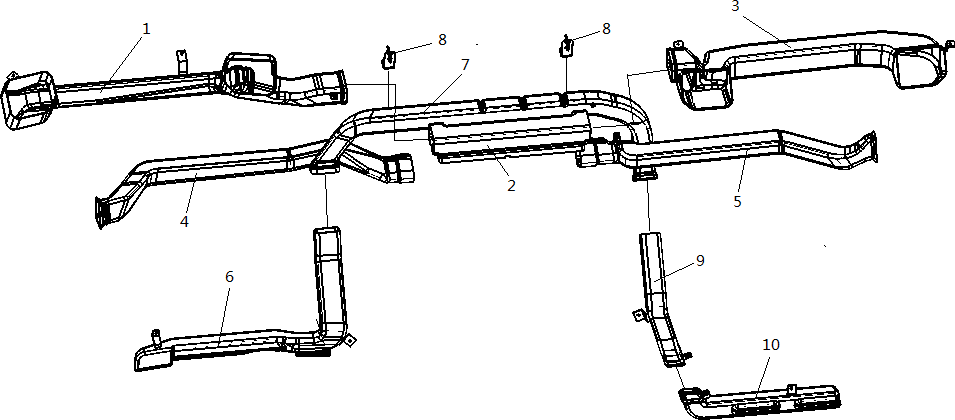

| NO |
Part.No |
Designation |
Name |
Quantity |
| 1 |
DZ15221842412 |
吹面风道左段（HP22405360712） |
Left section of blowing surface duct (HP22405360712) |
1 |
| 2 |
DZ15221842411 |
吹面风道中段（HP22405360711 |
The middle section of the blowing surface (HP22405360711 |
1 |
| 3 |
DZ15221842413 |
吹面风道右段（HP22405360713） |
The right section of the blowing surface (HP22405360713) |
1 |
| 4 |
DZ15221842401 |
左侧除霜风道（HP22405360721） |
Left defrost duct (HP22405360721) |
1 |
| 5 |
DZ15221842402 |
右侧除霜风道（HP22405360722） |
Right defrost duct (HP22405360722) |
1 |
| 6 |
DZ15221842421 |
吹脚风道左段（HP22405360732） |
Left section of blower air duct (HP22405360732) |
1 |
| 7 |
DZ15221842422 |
吹脚风道中段（HP22405360730） |
Mid section of blower air duct (HP22405360730) |
1 |
| 8 |
DZ15221841112 |
吹脚风道中段安装支架 |
Mounting bracket for mid section of blower duct |
2 |
| 9 |
DZ15221842423 |
吹脚风道右段（一/ HP22405360733） |
The right section of the blower air duct (1 / HP22405360733) |
1 |
| 10 |
DZ15221842424 |
吹脚风道右段（二/ HP22405360734） |
The right section of the blower air duct (two / HP22405360734) |
1 |
