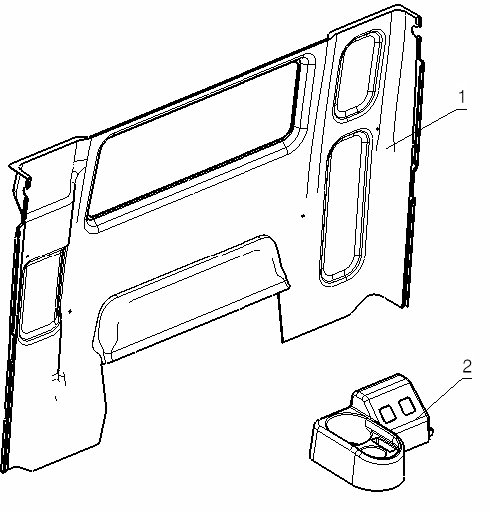

Rear Lining-Shacman Truck Cabin Parts Catalogs
NO Part.No Designation Name Quantity
1 DZ15221611131 后围内护板  rear lining assy 1
2 DZ15221611093 手控阀护罩(宽卧铺用) manual valve shield 1



REAR LINING, FLOOR MAT & INSULATION PLATE, SHACMAN PARTS CATALOGS


Floor Mat-Shacman Truck Cabin Parts Catalogs
NO Part.No Designation Name Quantity
1 DZ15221620010 前地板垫 (BH) Floor mat wide 1
  DZ15221621010 前地板垫/右置  Floor mat wide 1
  DZ15221620015 前地板垫(卧铺加宽、降低）  Floor mat wide
  DZ15221620102 整体发泡前地板垫/卧铺降低、加宽 Whole foam front floor mat/sleeper lower、widen
2 DZ15221620020 后地板(DZ22405120012) Floor mat rear 1
  DZ15221620050 后地板(DZ22405120051) Floor mat rear
  DZ15221620021 后地板垫(卧铺加宽、降低）  Floor mat rear
3 DZ15221620042 右后门槛压条 Anti-skid strip right back 1
4 DZ15221620032 右前门槛压条 Anti-skid strip right front 1
  DZ15221620033 右前门槛压条  Anti-skid strip right front 1
5 DZ15221620041 左后门槛压条 Anti-skid strip left back 1
6 DZ15221620031 左前门槛压条 Anti-skid strip left front 1



REAR LINING, FLOOR MAT & INSULATION PLATE, SHACMAN PARTS CATALOGS

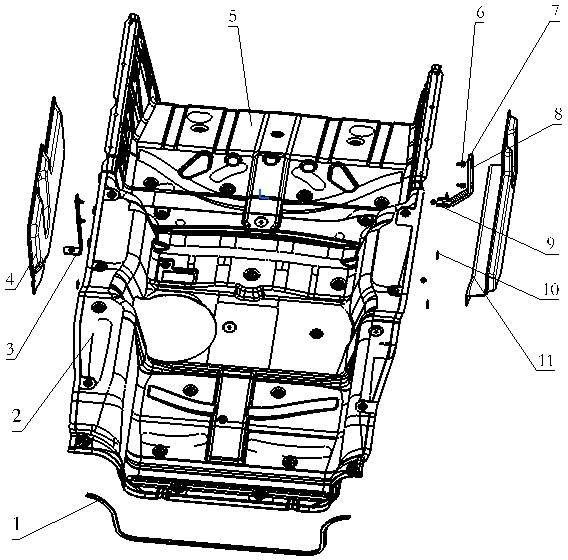

Insulation Plate -Shacman Truck Cabin Parts Catalogs
NO Part.No Designation Name Quantity
1 DZ15221690011 前围镶条（HP22405320022）  Anti-collision strip 1
2 DZ15221690035 发动机罩前隔音板  Front insulation 1
3 DZ15221690017 隔音板安装支架（DZ22405130060）  Insulation bracket 1
4 DZ15221690015 发动机左隔音板（DZ22405130070）  Left insulation 1
5 DZ15221690036 发动机罩后隔音板  Rear insulation 1
6 Q150B0625 六角头螺栓  Hex collar lock nut 4
7 Q40206 平垫片  Shim 6
8 DZ15221690029 隔音板安装支架  Insulation bracket 1
9 Q340B06 六角方螺母  Hex lock nut 6
10 DZ15221690014 锁止垫圈  Washer 57
11 DZ15221690028  发动机右隔音板  Right insulation 1
