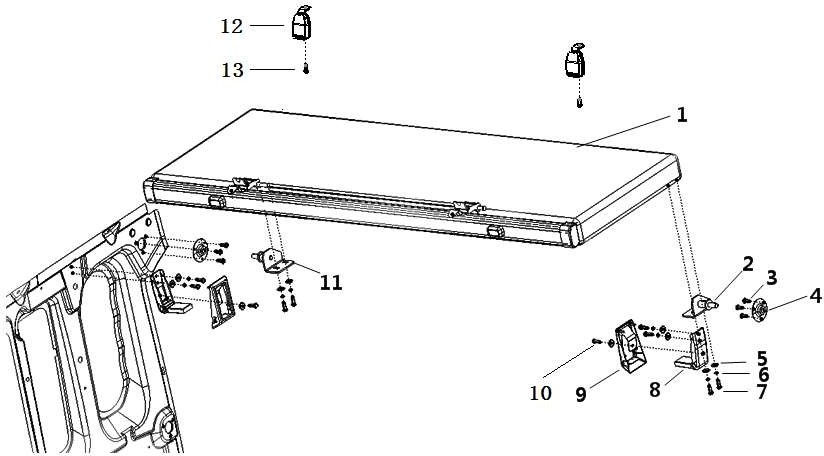

Upper Berth  -Shacman Truck Cabin Parts Catalogs
序 号 件 号 Name 数 量
NO Part.No Quantity
1 DZ15221570011 Upper berth 1
2 DZ15221570012 Upper berth bracket left 1
3 Q2140616 Screw 6
4 DZ15221570016 Upper berth bracket 2
5 Q40210 Washer 4
6 Q40310 Washer 4
7 Q150B1020T1F3 Hex screw 4
8 DZ15221570014 Upper berth bracket 2
9 DZ15221570015 Upper berth bracket jacket 2
10 Q1460825 Hex screw and washer 6
11 DZ15221570013 Upper berth bracket right 1
12 DZ15221570017 Lock catch 2
13 Q150B0820T1F3 Hex screw 2



UPPER & LOWER BERTH, SHACMAN TRUCK CABIN PARTS CATALOGS

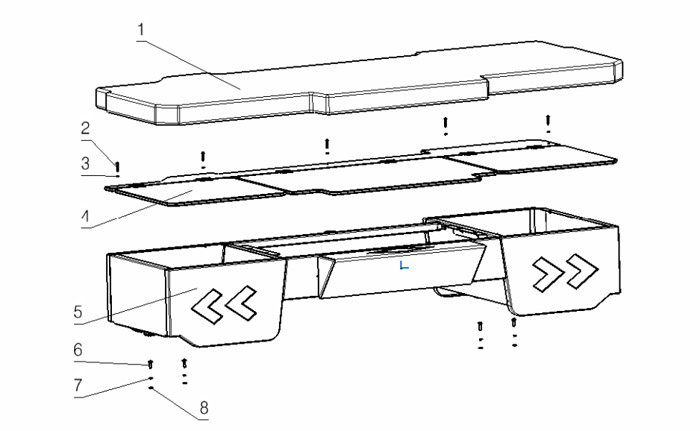

Lower Berth  -Shacman Truck Cabin Parts Catalogs
序 号 件 号 Name 数 量
NO Part.No Quantity
1 DZ15221570091 Lower berth cushion 1
2 Q2140630 Screw 5
3 Q40106 Washer 5
4 DZ15221570096 Berth Plate 1
5 DZ15221570165 Berth Bracket 1
6 Q2140825 Screw 8
7 Q40308 Spring Washer 8
8 Q40108 Washer 8
