FRONT COVER, SHACMAN TRUCK CABIN PARTS CATALOGS
HOME CATALOG > SHACMAN PARTS CATALOGS > SHACMAN CABIN PARTS CATALOGS >
| Front Cover Part 1 -Shacman Truck Cabin Parts Catalogs |
| 序 号 |
件 号 |
名 称 |
|
数 量 |
| NO |
Part.No |
Designation |
Name |
Quantity |
| 1 |
DZ15221110030 |
右扰流板总成 |
Right air guide cover |
1 |
| 2 |
DZ15221110015 |
前面罩(DZ22405320011) |
Front lid |
1 |
| 3 |
DZ15221110016 |
上格栅(DZ22405320012) |
Grille up |
1 |
| 4 |
DZ15221110017 |
中格栅(DZ22405320013) |
Grille middle |
1 |
| 5 |
DZ15221110018 |
下格栅(DZ22405320014) |
Grille down |
1 |
| 6 |
DZ15221110020 |
左扰流板总成 |
Left air guide cover |
1 |
| 7 |
DZ15221110019 |
导水槽(HP22405320020) |
Guide gutter |
1 |
| 8 |
Q1460616 |
六角头螺栓、弹簧垫圈和平 |
Hexagon nut and spring and flat washer assy |
12 |
| 9 |
Q39748162 |
A 型簧片螺母 |
A spring nut |
26 |
| 10 |
Q2214816 |
十字槽大半圆头自攻螺钉 |
self tapping screw and |
26 |
| 11 |
Q40205 |
大垫圈 |
Washer assy |
26 |
| 12 |
DZ15221110055 |
前面罩锁芯左安装支架总成 |
Left front lid install trestle |
1 |
| 13 |
Q340B06 |
Ⅰ型六角头螺母 |
Hexagon nut |
10 |
| 14 |
Q40206 |
大垫圈 |
Washer |
10 |
| 15 |
DZ15221110054 |
前面罩锁芯 |
Front lid install head |
2 |
| 16 |
DZ15221110052 |
前面罩铰链过渡板总成 |
Hinge transition plate |
2 |
| 17 |
DZ15221110021 |
前面罩气弹簧左支架 |
Left air spring bracket |
1 |
| 18 |
DZ15221110040 |
气弹簧总成(53M-03025) |
Air spring assy |
2 |
| 19 |
Q1460820 |
六角头螺栓、弹簧垫圈和平 |
Hexagon nut and spring |
4 |
| |
|
垫圈组合件 |
and flat washer assy |
|
| 20 |
DZ15221110023 |
导水槽密封条 |
Sealing strip |
1 |
| 21 |
DZ15221110022 |
前面罩气弹簧右支架 |
Right air spring bracket |
1 |
| 22 |
DZ15221110065 |
前面罩锁芯右安装支架总成 |
Right front lid install trestle |
1 |

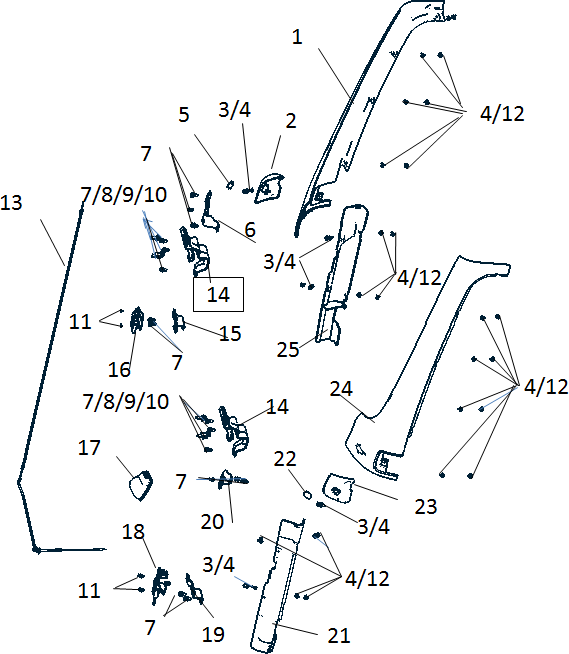

| Front Cover Part 2 -Shacman Truck Cabin Parts Catalogs |
| 序 号 |
件 号 |
名 称 |
|
数 量 |
| NO |
Part.No |
Designation |
Name |
Quantity |
| 1 |
DZ15221110081 |
右 A 柱外饰板 |
Right A column exterier panel |
1 |
| 2 |
DZ15221110085 |
右侧围上铰链装饰板 |
Right side hinge trim panel |
1 |
| 3 |
Q39748162 |
A 型簧片螺母 |
A spring nut |
4 |
| 4 |
Q2214816 |
十字槽盘头自攻钉和大垫圈 |
self tapping screw and Washer assy |
16 |
| 5 |
DZ15221110086 |
右侧围上铰链装饰板堵盖 |
Right side hinge trim panel cover |
1 |
| 6 |
DZ15221110083 |
右 A 柱外饰板安装支架 |
Right A column exterier panel install trestle |
1 |
| 7 |
Q1460820 |
六角头螺栓、弹簧垫圈和平垫圈组合件 |
Hexagon nut and spring and flat washer assy |
20 |
| 8 |
Q40308 |
弹簧垫圈 |
Washer |
6 |
| 9 |
Q40208 |
大垫圈 |
Washer |
6 |
| 10 |
Q150B0830 |
六角头螺栓 |
Hexagon nut |
6 |
| 11 |
Q1460616 |
六角头螺栓、弹簧垫圈和平垫圈组合件 |
Hexagon nut and spring and flat washer assy |
4 |
| 12 |
Q398B04 |
A 型通孔式嵌装塑料螺母 |
Plastic nut |
14 |
| 13 |
DZ15221110100 |
锁拉丝总成 |
Lock cable assy |
1 |
| 14 |
DZ15221110110 |
前面罩铰链总成 |
Hinge assy |
2 |
| 15 |
DZ15221110062 |
前面罩右锁座安装支架总成 |
Right front lid install trestle |
1 |
| 16 |
DZ15221110090 |
前面罩右锁座总成(R) |
Right lock assy |
1 |
| 17 |
DZ15221110120 |
面罩锁扣手 |
Unlock hand shank |
1 |
| 18 |
DZ15221110080 |
前面罩左锁座总成(L) |
Left lock assy |
1 |
| 19 |
DZ15221110061 |
前面罩左锁座安装支架总成 |
Left front lid install trestle |
1 |
| 20 |
DZ15221110073 |
左 A 柱外饰板安装支架 |
Left A column exterier panel install trestle |
1 |
| 21 |
DZ15221110077 |
左车门下铰链装饰板 |
Left side hinge trim panel cover |
1 |
| 22 |
DZ15221110076 |
左侧围上铰链装饰板堵盖 |
Left side hinge trim panel |
1 |
| 23 |
DZ15221110075 |
左侧围上铰链装饰板 |
Left A column exterier panel |
1 |
| 24 |
DZ15221110071 |
左 A 柱外饰板 |
Right door hinge trim panel |
1 |
| 25 |
DZ15221110087 |
右车门下铰链装饰板 |
Right A column exterier panel |
1 |
