CABIN STEP, SHACMAN TRUCK CABIN PARTS CATALOGS
HOME CATALOG > SHACMAN PARTS CATALOGS > SHACMAN CABIN PARTS CATALOGS >

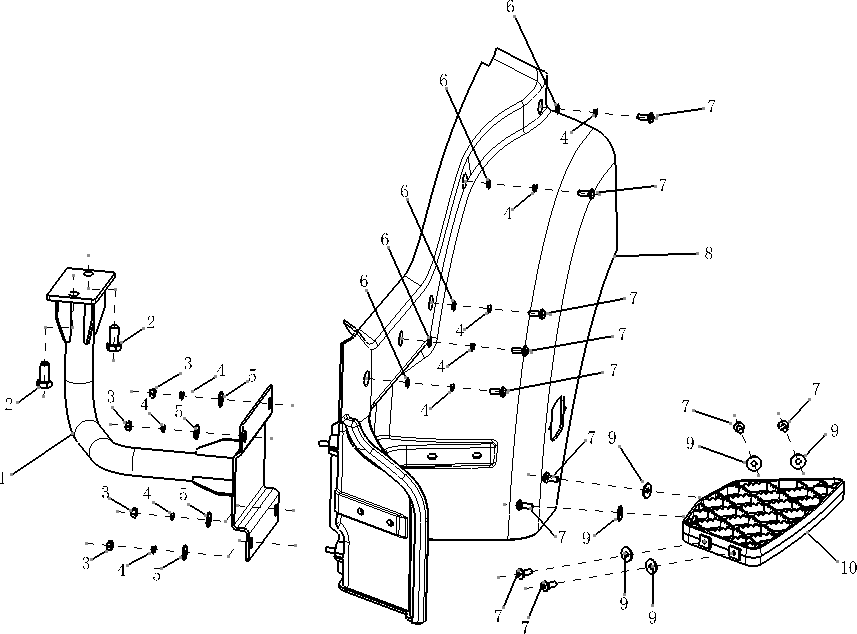

| Bracket Assembly Left -Shacman Truck Cabin Parts Catalogs |
| 序 号NO |
件 号Part.No |
名 称Designation |
Name |
数 量Quantity |
|
| 1 |
DZ15221242330 |
左上踏板支架总成 |
bracket assembly left |
1 |
| 2 |
Q151B1430TF2 |
六角头螺栓-细牙 |
Screw |
2 |
| 3 |
Q340B08 |
1 型六角螺母 |
Hex bolt |
4 |
| 4 |
Q40308 |
弹簧垫圈 |
Washer |
9 |
| 5 |
Q40208 |
大垫圈 |
Washer |
10 |
| 6 |
Q40008 |
小垫圈 |
Washer |
5 |
| 7 |
Q2140820 |
十字槽盘头螺钉 |
Screw |
11 |
| 8 |
DZ15221242451 |
左上门台阶 |
Left door step |
1 |
| 9 |
DZ15221242462 |
上台阶 |
Ladder |
1 |

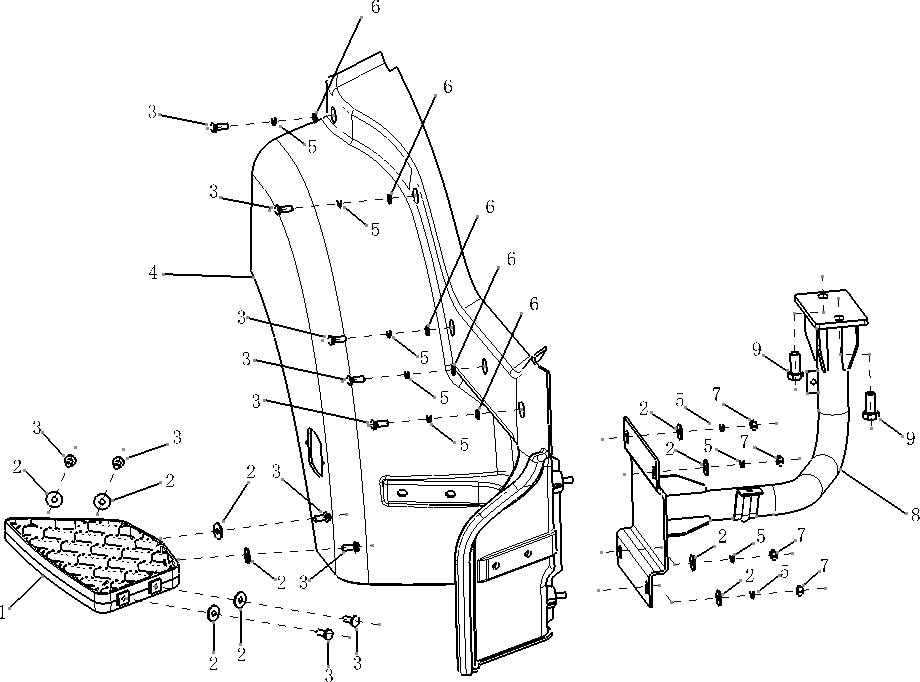

| Bracket Assembly Right -Shacman Truck Cabin Parts Catalogs |
| 序 号 |
件 号 |
名 称 |
|
数 量 |
| NO |
Part.No |
Designation |
Name |
Quantity |
| 1 |
DZ15221242462 |
上台阶 |
Ladder |
1 |
| 2 |
Q40208 |
大垫圈 |
Washer |
10 |
| 3 |
Q2140820 |
十字槽盘头螺钉 |
Screw |
11 |
| 4 |
DZ15221242452 |
右上门台阶 |
Right door step |
1 |
| 5 |
Q40308 |
弹簧垫圈 |
Washer |
9 |
| 6 |
Q40008 |
小垫圈 |
Washer |
5 |
| 7 |
Q340B08 |
1 型六角螺母 |
Hex bolt |
4 |
| 8 |
DZ15221242340 |
右上踏板支架总成 |
bracket assembly right |
1 |
| 9 |
Q151B1430TF2 |
六角头螺栓-细牙 |
Screw |
2 |
